Takman resistors
Ultra premium carbon film resistors for audio


Takman has stopped the production of these resistors because the paint they used on the outside of the resistors is not available anymore. They are looking for a substitute but until now they are not yet happy with the results.

This is just what the DIY community has been waiting for. TAKMAN Japan, have developed a truely supreme carbon film resistor, specifically developed for Audio.

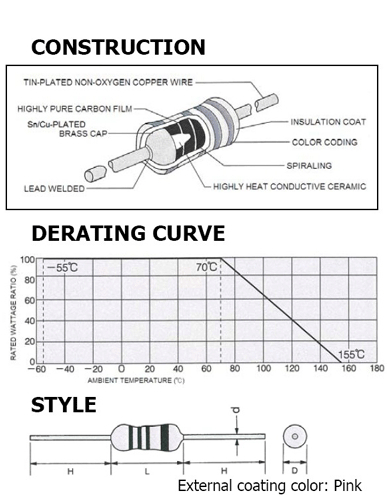

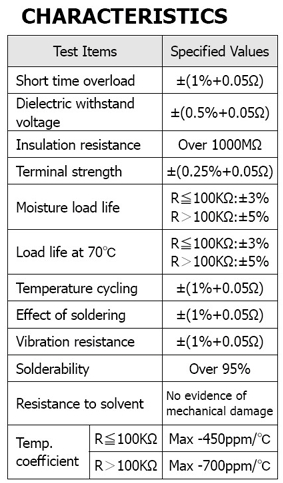

Datasheet TAKMAN









Takman REX75 1 Watt
BODY diameter 5mm, length 14mm. LEAD diameter 1.0mm.

Values available:
10R, 12R, 15R, 18R, 22R, 27R, 33R, 39R, 47R, 56R, 68R, 82R,
120R, 150R, 180R, 220R, 270R, 330R, 390R, 470R, 560R, 680R, 750R, 820R,
1K1, 1K2, 1K5, 1K8, 2K, 2K2, 2K7, 3K3, 3K6, 3K9, 4K3, 4K7, 5K6, 6K8, 8K2
10K, 12K, 15K, 18K, 20K, 22K, 27K, 33K, 39K, 47K, 51K, 56K, 68K, 82K,
120K, 150K, 180K, 220K, 270K, 330K, 390K, 470K, 560K, 680K, 820K, 910K
€ 1.25
ex.VAT
€ 1.50
incl.VAT
each











Takman REX75 1 Watt
BODY diameter 5mm, length 14mm. LEAD diameter 1.0mm.

Values:
100R, 1K, 100K, 1M

These are the most used values and our existing stock was sold out. We had to buy these values from another small parts supplier, but we had to pay a much higher amount.

Quantities are very limited.
€ 2.50
ex.VAT
€ 3.00
incl.VAT
each







TAKMAN Carbon film resistors


TAKMAN resistors are already extremely popular in manufactured hi-fi, their notoriety excelerated by their amazing specification:

• Low distortion
• Non-magnetic
• Brass end caps and oxygen free copper lead outs
• High quality sound

During development, TAKMAN recognised how sound is influenced by the various structures and materials used in manufacture. Magnetism, inductance, electrification caused by contact resistance and vibration make the sound flat and coloured.
Ultimately you will hear an edgy brightness at the highs but overall a lack of accuracy and detail. To remove these incidental noises TAKMAN developed their first audio grade resistor, the MAESTRO, the predecessor to the REX (carbon film) and the REY (metal film).
With outstanding specifications, TAKMAN, by making the best of their know-how and sophisticated technology of a resistor-specialized manufacturer have created the best resistor for your audio equipment or circuits seeking for unlimited high-quality sound.
So now you can enjoy the great intrinsic characteristics of carbon film resitors - natural and easy to listen too but with greater defined detail and impact. At a great price you will not be disappointed with these amazing gems.
